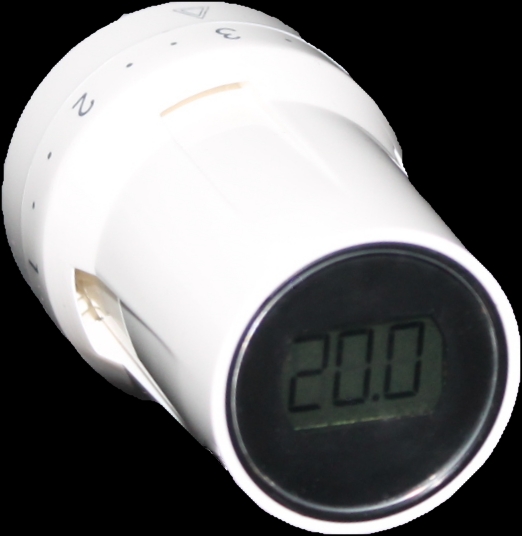

HG-TEC thermostat head ECO-VIEW for the proportional and exact regulation of radiator valves without auxiliary power. With integrated digital temperature display to control the measured actual temperature.

Technical data:

Thermostat head:

Connection thread ring M 30 x 1.5,
Liquid sensor with integrated expansion elements,
Dimensions: Length ~92mm, diameter ~ 55mm,
Frost protection identifier,
Frost proof at 6°C
Characteristic data: 1 – 5 (Caution: 0 = closed without frost protection function)
Temperature range: 6 ~ 26°C
Compatible with valve bodies M 30 x 1.5, e.g.
Heimeier, MNG, Junkers, Landis&Gyr„ Duodyr“, Honeywell- Braukmann from 1995, Oventrop from 1999 30x1.5, Schlösser, Simplex, ValfSanayii, Mertik, Maxitrol, Watts,Wingenroth (Wiroflex), R.B.M., Tiemme, Jaga, Kermi
Not compatible e.g. with Danfoss, Oventrop, Vaillant M 30 x 1.0 (with adapter)


Digital thermometer:

Electronic digital thermometer
Measuring frequency: approx. 60 seconds
Battery: Type CR 2450
Display area: 13mm x 21mm


Features:

Fixed digital display.

*All information subject to change.
Subject to technical changes.
